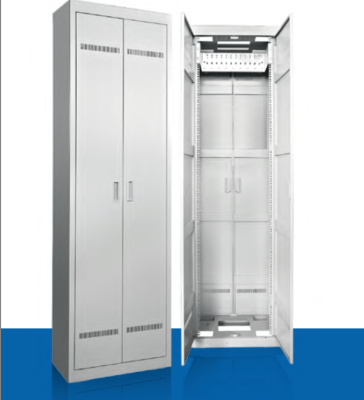

Tủ 432FO-504FO -720FO INDOOR 19”-SC LC FC ST
Tủ 432FO – 504FO- 720FO INDOOR – 19”- SC FC LC ST
– Chất liệu khung tủ làm bằng sắt, sơn tĩnh điện
– Độ dày tôn 1.2mm, Cáp vào dùng cho cáp đường kính max 22.0mm
– Kích thước:
– Khay hỗ trợ đấu nối Pigtail, PLC,..
– Cổng kết nối chuẩn SC, FC, LC hoặc ST
– Hãng CIXI TENGXIN, CHINA

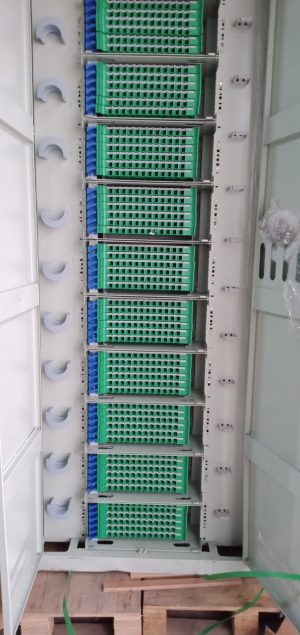

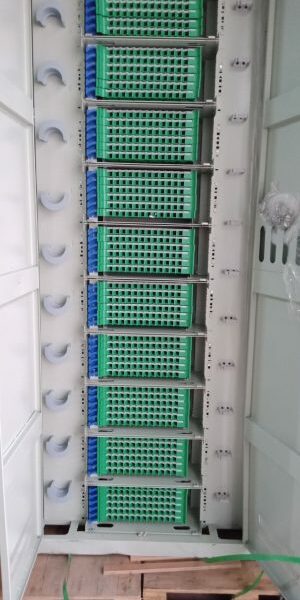

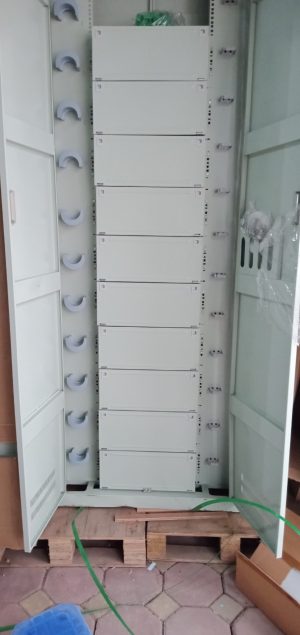

ODF 432FO – 504FO- 720FO INDOOR – 19”- SC FC LC ST
Products ODF 720FO is used to protect, distribute and manage information and communication system using optical fiber. The optical connection points, system of fiber optic cable telecommunications center, the office will greatly ease the management and distribution of each small module. ODF can be upgraded up to 720-capacity optical path. With a simple interface for ease of use, which helps network managers save time in the maintenance system for customers.
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- Work Temperature: -45-+85C
- Relative humidity:≤85%(+30°C)
- Atmospheric pressure: 70~106 KPa
- Nominal work wave-length: 850nm, 1310nm, 1550nm
- Connectors loss: ≤0.2dB
- Insertion loss: ≤0.2dB
- Return loss: ≥45dB (PC),55dB(UPC),60dB(APC)
- Isolation resistance(between frame and protection grounding):>1000 MOHM /500V(DC)
- Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
- Multiple installation options, including floor and wall installations
- With secure and reliable fastening and grounding protection devices for the optic fiber
- Applicable to strap-shaped and non-strap shaped fibers
- Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material, adapting various bad weather condition, with reliable sealing, water-proof and damp proof.
- Adaptors assembling with deflexion of 30º to ensure fiber pigtail bending radius, with perfect control winding ring of the fiber in horizontal and vertical, which makes the fiber distribution in tidy and safe.
- The bottom end is assembled with spare splice tray, for direct fusion and connection of trunk optical cables and distribution in cables
- Outdoor cabinet body with high intensity and anti-erosion performance. It is able to counter abrupt climate change and influences of extreme environment. Protection level is IP65
- Capacity can be flexibly customized as required. Installation is quick and convenient
- Adapter panel slants on the operation facial which will prevent it from being scotched by light as well ensuring the curve radius of the optic fiber.
- Built-in direct splice unit is capable for providing direct connection function
- Temperature: -5 º C ~ +60 º C
- Extended temperature: -5 º C ~ +80 º C
- Humidity: ≤ 95% (+40 º C)
- Atmospheric pressure: 70 ~ 106Kpa
- Insulating resistance: ≥ 2000MΩ/500V
- Voltage resistance strength:> 3000V (DC) 1 min non-puncture, no are-over
Features of accessories:
- Complies with: JSC, IEC, Telcordia GR 326, YD, NTT ..
- Standard Fire: UL94V-0
- Environmental Standards: RoHS
- There are 12 colors: white, blue, orange, leaves, brown, gray, white, red, black, yellow, purple, blue
- Wire diameter can be 0.9mm, 2.0mm or 3.0mm
- Standard length 1.5m (2m 3m possible …)
- You can use the different types of connector: SC, FC, LC, MT-RJ, E2000 .
- Splice $ Distribution Enclosure
- Modular design for 19” standard frame
- Bullt in splice and distribution modules
- Each module has rellable positioning deveces
- Modules can be dram out from the enclosure
- Flexible intallation and convenient operation and maintencance
- Compact sizz .
Splice & Distribution Module
- Capacity up to 12 port
- Combined splice and distribution
- Suitable for bibbon and non-ribbon cables
- oblique instrallation of adapters
- Suitable for instrallation with FC, SC, LC and ST adapters
Parameter Unit Standard & Requirement PC(SM) UPC(SM) APC(SM) PC(MM) Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.3 Return Loss dB ≥45 ≥50 ≥60 ≥35 Mechanical Endurance (500T) dB ≤0.2 Exchangeability dB ≤0.2 Durability Time ≥1000 Tension N/Cm ≥120 Pulp N/Cm ≥550 Radius of Curvature Mm ≥3 Vibration dB ≤0.2 Operating Temperature ºC -40 ~ +75 Storage Temperature ºC -45 ~ +85 Cable Diameter mm Ф3.0, Ф2.0, Ф0.9 Model Fiber Quantity Dimension(mm) ODF-720FO 720 2600*840*300
